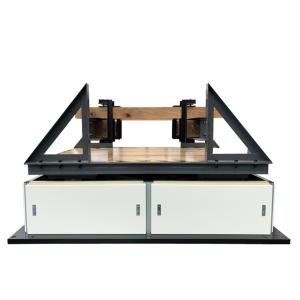

OEM Vibration Test Bench , Transportation Simulation Bump Table

Name: OEM Vibration Test Bench Transportation Simulation Bump Table
Brand: GSKA
Price: 1 USD

China OEM Vibration Test Bench , Transportation Simulation Bump Table factory

Brand Name : GSKA

Model Number : Transportation Bounce Test System

Certification : CE

Place of Origin : Dongguan China

MOQ : Negotiate

Price : Negotiate

Supply Ability : 100 Set / Sets per Month

Delivery Time : 10-60days after confirmed payment or by contract stipulation

Packaging Details : Export package

Max. Load (kg) : 2000kg

Brand : GSKA

Displacement (mm) : 25.4mm

Specification : UL, CE, ISO9001, CCC, RoHS

Working Table Size (mm) : 2700×1800mm

Consumption Power (kVA) : 20kVA

Working Environment : Temperature Range 0～40℃, Humidity≤80% (no condense)

Power : AC 380V ±10% 50Hz

Contact Now

Vibration Test Bench For Transportation Simulation Bump Table OEM

Product description:

Bounce testing simulates the constant loose cargo state during truck transport. Often times, containers carrying military and civilian hardware (such as: medical supplies, electronics, weaponry, communication devices) travel for extended periods of time and must be transported off-road. All of these items must maintain functionality upon arrival at their destinations.

The International Safe Transit Association (ISTA) developed a civilian package test procedure resembling the military test: 1A for products weighing less than 150 lb (68 kg) and 1B for over 150 lb (68 kg). Additional tests in subsequent procedures such as 1C, 1D, 2A and further combine the loose cargo basic test with atmospheric conditioning and other factors.

MIL-STD-810 and ISTA Procedures 1A and 1B offer package test procedures for packages subjected to repeated vibration (bouncing Testing) for a distance of up to 150 miles (240 km), while unrestrained and repeatedly colliding with other cargo and the walls and floor of a four-sided compartment.

Technical Specifications:

Model Parameters	GSKA51－100	KGSKA51－200	GSKA51－500	GSKA51－1000	GSKA51－2000
Max. Load (kg)	100	200	500	1000	2000
Displacement (mm)	25.4
Frequency	2~5Hz (120~300RPM)
Test Motions	Rotary
Working Table Size (mm)	1700×1200	1900×1300	2000×1500	2700×1650	2700×1800
Height of Specimen COG(mm)	＜500	＜600	＜700
Consumption Power (kVA)	8	10	12	15	20
Weight (kg)	1600	2000	3500	5000	8500
Working Environment	Temperature Range 0～40℃,humidity≤80% (no condense)
Standards	ISTA-1A, 1B, 1C, 1D, 2A, 2B, 6-FedEx-A, 6-FedEx-B; ASTM-D999; ISO-2247; MIL STD-810G; FED-101

OEM Vibration Test Bench , Transportation Simulation Bump Table

Customer Support Services:

Ø Installation

Ø Training (Training customer employees)

Ø Calibration

Ø Preventative maintenance

Ø Replacement parts

Ø Assistance via phone or internet

Ø On-site diagnosis and repair/online diagnosis and repair
